Understanding the Difference Between AC and DC
Electricity serves as the foundation of modern life. Electricity enters your life the moment you flip a switch to turn on a lightbulb, recharge your smartphone, or power on your computer. But not all electricity is alike. Electricity primarily exists in two forms: AC, or Alternating Current, and DC, or Direct Current. Recognizing the difference between these two is essential for anyone dealing with electrical engineering, electronics, and even general consumer decisions.
In this blog, we will discuss what the difference is between AC and DC, their introductory information, working principles, applications, along with advantages and disadvantages. We will look into both AC and DC powering your everyday devices as well as which of the two forms has a stronger case for being at the forefront of future energy consumption.
What is AC (Alternating Current)?
AC means Alternating Current, where electrons change their direction of flow every now and then. Unlike DC, where the voltage is constant in a real-time span, for an AC circuit the positive and negative portions of the waveform change over time. Usually, it is represented as a sine wave signal, like in the below diagram:
While DC was the first type of electric current to be used and its use is still prevalent, AC gained popularity in the late 1800s after being perfected by Nikola Tesla for long-distance power transmission since it hardly loses energy during transition. This made AC ideally suited for distribution of electricity over long distances.
What is DC (Direct Current)?
Direct current (DC) pertains to a current that flows in one direction only. The flow of electrons in DC is unidirectional, unlike AC, and it provides a constant voltage. One example of a DC source is a battery.
During the “War of Currents,” which pitted Tesla against the championing of DC by Thomas Edison, who became a famous inventor in his own right, the wiring system was overpaid. AC eventually triumphed over DC, thanks to its ability to efficiently carry electricity long distances, but DC remains an important player in many applications today.

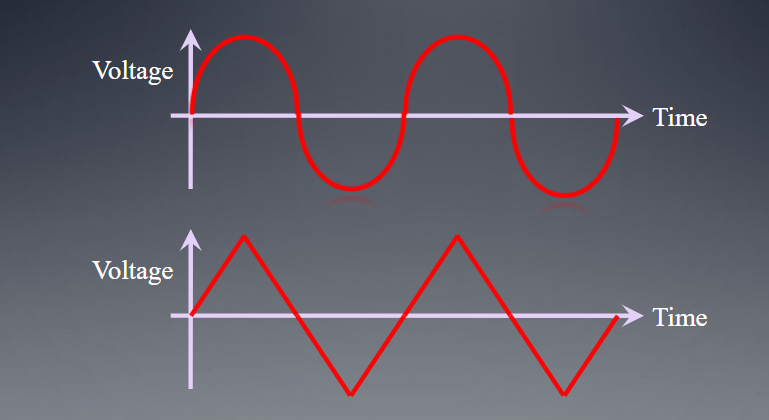

Ac Waveform:
Alternating current waveform is usually shown as a sine wave (the periodic function that repeatedly oscillates), graphically portraying the nature of AC voltage and currents. The major difference is that in a DC current the flow of current has always the same sign whereas in an AC waveform it flows from positive to negative. This oscillation takes place because the current direction is reversed periodically, with each cycle consisting of a move from zero current to a positive peak, back through zero, where it becomes negative at a peak, and finally back to zero. The frequency also known as cycles per second is measured in Hertz(Hz). The frequency may refer to two things; for instance, in most household power supplies, the frequency is 50 or 60 based on the region.

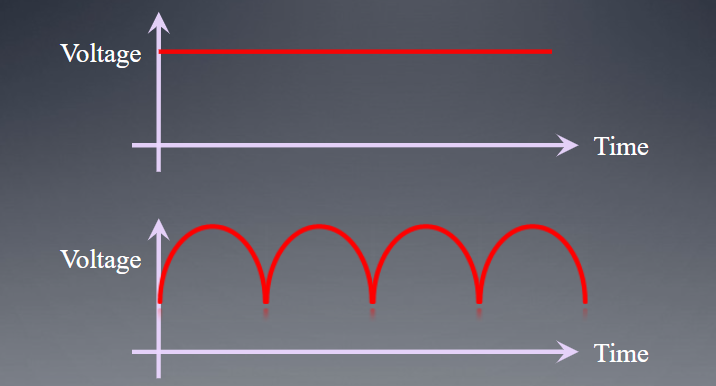

Dc Waveform:
The direct current (DC) waveform is defined by its constant, non-alternating flow of electric current. In contrast to the characteristic of alternating current (AC), where the current changes direction periodically, DC has a constant directional flow and may be represented as a straight horizontal line in a waveform diagram. It signifies that the voltage and current are steady state, meaning no oscillation or wiggle over time. Batteries and solar cells, both of which are frequently employed in electronics, generate electric current of the direct type (DC). DC is used for stable and constant power recently, e.g., smartphones, laptops and LED devices run on DC because of more efficient.
Key Differences Between AC and DC
A. Direction of Flow:
- AC: direction switched from time to time.
- DC: Flows in one direction.
B. Voltage Representation:
- AC: The voltage alternates between positive and negative values.
- DC: Constant time voltage.
C. Transmission Efficiency:
- AC: Better long-distance power transmission because of easy voltage transformation.
- DC: Over long distances, loses power faster.
D. Generation Source:
- AC: Power stations generate using turbines (mechanical energy is converted into electrical).
- DC: It is commonly produced by batteries, solar cells, or a DC generator.
E. Power Transmission:
- So AC can be transformed easily up or down using transformers — hence its electric grid suitability.
- DC — Requires complex systems for up-step or step-down conversion.
The War of Currents
In the 1800s, a legendary battle raged between Nikola Tesla and Thomas Edison over AC vs. DC power. Which was referred to as the War of Currents. The ability to transmit AC over long distances with very low losses ultimately made Tesla’s vision triumph. AC breakthrough enabled massive city-level electrification of AC, which was not possible with DC at that time.
But that did not eliminate the need for DC. Likewise, it settled in smaller, localized systems, especially for electronics where DC was a better fit due to its steady voltage.
Applications of AC and DC
AC Applications:
Home and Commercial Power Supply:: AC (Alternative Current) is provided to us by most parts of the world as it aids the transmission process over a longer distance.
Electric Motors: Appliances like refrigerators, washing machines and some industrial machines use AC motors.
Transmission Lines: Power is usually generated in AC, sent over long distances through high voltage lines and then stepped down by transformers to household levels.
DC Applications:
Batteries: All battery-operated devices like a flashlight or smartphone, work on DC power.
Electronics: almost all electronic devices — phones, computers, televisions etc.— internally use direct current (DC) electricity. It means even your device is plugged in at AC socket, internally it will do the conversion AC to DC.
Electric Vehicles (EVs): For Electric Vehicles (EVs), they contains buttery as main power source, so they used DC current.
Solar Power: Solar panels produce DC power that is converted to AC for distribution on the grid or used directly in devices powered by direct current.
Advantages of AC and DC
Advantages of AC:
- Efficient Transmission: since AC voltage can be stepped up and down, power loss over long distances is reduced.
- Transformability: Ac is easily transform into different voltage levels with help of transformers.
- Availability: AC is the standard in electrical grids around most of the world
Advantages of DC:
- Constant Voltage: DC present a steady continuous unidirectional flow of electricity, that means DC is an ideal for the electronics which required constant level of voltage.
- Compatibility with Modern Technologies: With solar panels and batteries gaining traction as renewable energy resources, DC is compatible with several modern technologies.
- Efficiency for Small Distances: For small distances (where principles of electromagnetism largely do not apply) such as electron circuits, DC is more efficient than AC.
Disadvantages of AC and DC
Disadvantages of AC:
- Complex Circuitry: AC system demand require additional circuitry to keep it alive, especially they need to convert AC into DC for a lot of devices (i.e. computer).
- Harmonic Distortion: In the AC systems there exist distortion of waveform( harmonics) which may affect sensitive equipment performance.
Disadvantages of DC:
- Long-Distance Transmission: DC is less efficient than AC for power transmission over long distances, though the development of high-voltage DC transmission (HVDC) is minimizing this issue.
- Voltage Transformation: For this reason, DC is less common than AC for long-distance power transmission: Voltage transformation (stepping up or stepping down) from one voltage level to another is more complex and costly as compared to AC where transformers can be conveniently used
The Role of AC and DC in Renewable Energy
As renewable energy gathers more pace, both AC and DC likely will play important roles. For example, solar panels generate DC electricity that has to be changed to AC in order for it to flow into the electrical grid. Yet, in small-scale solar systems or off-grid houses, DC is used directly to electricity thehome appliances.
Another point, an electric vehicle (EV) runs on DC current as EV batteries supply a DC source. In contrast, to charge an EV from the grid AC must be converted to DC through inverters and converters.
We could in fact see both more alternating current (AC) systems and direct current (DC) systems integrated into our daily lives simply due to the advancements of renewable energy systems such as wind turbines and solar panels.
The Future of AC and DC:
There’s been a lot of speculation on whether we go for the AC or DC future. Though AC is embedded in the world infrastructure, DC has recently captured a lot of eyes with applications toward renewables and EVs.
With improving technologies, high-voltage depending on alternative current (HVDC) transmission is now more easily able to make DC competitive within the lengthy-distance commercial center that once was ruled by AC. DC lines, meanwhile, are already being utilized in parts of the world to boost long-distance power transmission at a lower energy loss than AC.
It is pointed out that DC microgrids are now being created for industrial usage along with data centers too, as enhanced energy options for nearby levels.
Conclusion
Neither AC or DC cannot be completely replaced by the other as both have their pluses and minuses. AC takes over in large-scale power distribution due to its suitability for long-distance transmission but DC is indispensable in electronics, batteries, and renewable energy systems.
With the changing technology and need for renewable energy, it is expected that both AC and DC systems will be more integrated in the future. As a consumer, AC and DC knowledge is nice to have whether you are an engineer or electrician yourself or just a curious person because it can help you make more rational choices on how to operate equipment you will buy one day!!
